Quick Details

  • Type: Other
  • Brand Name: LOTUSMED
  • Model Number: 600 I
  • Place of Origin: China (Mainland)
  • Mechanism: Peristaltic pump
  • Operating Mode: Flow Rate Mode, Drop rate Mode (optional)
  • Preset Volume: 1-9999 ml
  • Accumulated Infusion Volume: 1-9999 ml
  • Increment: 1, 10, 100 (ml/h)
  • Accuracy: ± 5%
  • KVO Rate: 1 ml/h
  • Bolus Rate: 600 ml/h
  • Drop rate range: 1-400 drop/min with optional Drip Sensor

Packaging & Delivery

Packaging Details 1 set/carton
Carton size: 280*250*20cm
OEM appointed packages

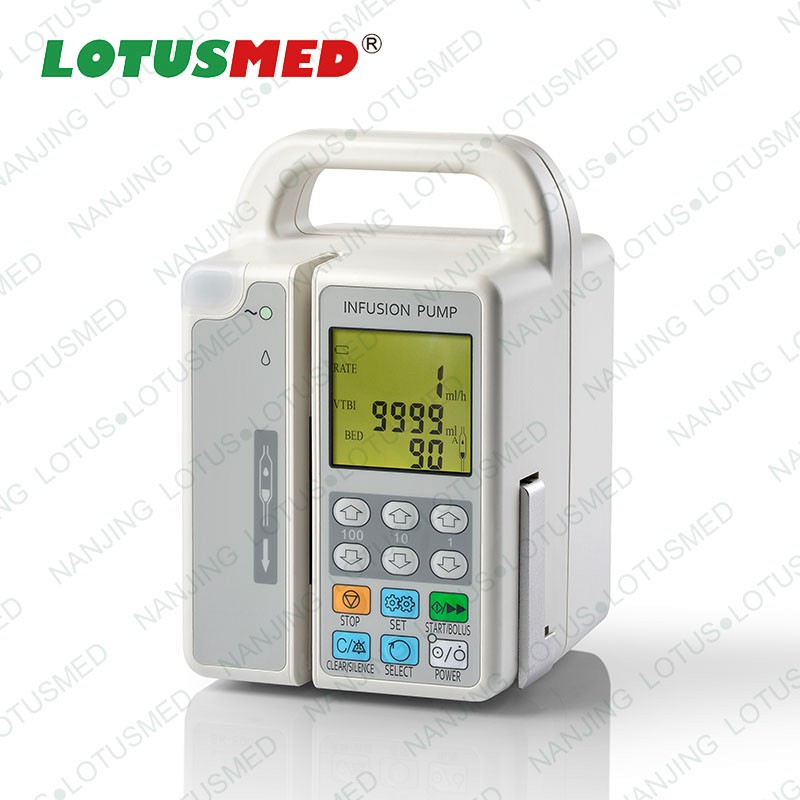

Best selling High Quality and Competitve Infusion Pump


Product Description


                          Welcome to Nanjing Lotus/LOTUSMED !

Click here for more items: http://chevy-medical.en.alibaba.com




* Innovative door-free design for easy operation
* Middle Detection and Ultrasound Detectors to double guarantee the correct IV set loading
* Anti-bolus system to reduce significantly bolus after occlusion sudden release
* Reminder alarm in case of forgetting to start the operation
* High speed infusion up to 2000ml/h satisfies special clinical scenario
* Optional drip sensor and fluid heater
* Wireless data transmission with infusion supervision system




* Unique door-free design

* Compatible for all standard IV sets.

* Rate : 1~600ml/h

* KVO : 1ml/h

* Big LCD indicator

* Various alarm function
* Bolus : 600 ml/h




Screen             2.7 inch B/W LCD
Information         Flow Rate and unit, Preset Volume and unit, Accumulated infusion volume and unit, Finish, Occlusion, Air Bubble, Bed No., AC Power indicator, Battery capacity, Battery charge indicator, IV set, etc.
Status Indicator      Stop, Run, Bolus, KVO


Alarm Type


Air Bubble, Finish, Occlusion, No AC Power, Low Battery, Battery Empty, Reminder to operate, Errors, Handle opened
Air Bubble Level: 1-3 levels adjustable, turn off
Occlusion Alarm Pressure Range: 3 levels: 70kPa, 100kPa, 130kPa (±30kPa), Level Low as default




Type              Lithium polymer battery
Life               Up to 2 hours continuous operation@25 ml/h flow rate with standard battery(1 hour for 600IB)
 Up to 4 hours continuous operation@25 ml/h flow rate with optional battery(2 hours for 600IB)




Temperature         5 - 40 ℃ for operating, -20 - 50 ℃ for storage
Air Pressure         86 - 106 kPa for operating, 50 - 106 kPa for storage
Humidity            20 % - 80 % for operating, 10 % - 95 % for storage




Classification        Class II, Type CF
Dimension          120 mm(L) × 140 mm(D) × 195 mm(H)
Weight             Approximately 1.7 kg
Power Supply       100 - 240 VAC, 50/60 Hz
Waterproof level    IP21


Packaging & Shipping


Package : Individual packed in one carton. 1set/carton,

Shipping : By Sea/Air/Express


Our Services

  Choosing us, choosing excellent service.

1.Low MOQ: It can meet your promotional business very well.
2.OEM Accepted: We can produce any your design .
3.Good Service: We treat clients as friends.
4.Good Quality: We have strict quality control system .Good reputation in the market.
5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).

Company Information

We believe: Your success is our success, and our success is your success.


Nanjing Lotus LOTUSMED  is the biggest professional and experienced surgical blades supplier for healthcare in China. High Quality is our pursuit.All our items is coming with certification and we have special team work for after sales services.



Our Team



Customer Alaine How about the lead time?

Answer from Chevy:About 30 working days after receiving the payment and confirming all the artworks, exactly lead time upon the quantity of your order and the packaging you required.

Customer Daniel:Do you have any products in stock?

Answer from Chevy:The products will be produced according to your order.

Customer Hank:Do you have any certificates?

Answer from Chevy:CE and ISO.

Customer Jennifer: What is the best price you can offer?

Answer from Chevy:We always working hard to satisfy our customer, from the quality until the price, as we do understand the market situation. So, please don't hesitate to send your inquiry for us to give you our best price.
